GUIS-54 Universal Joint (Cross Joint) | KIMI KOTO
GUIS-54

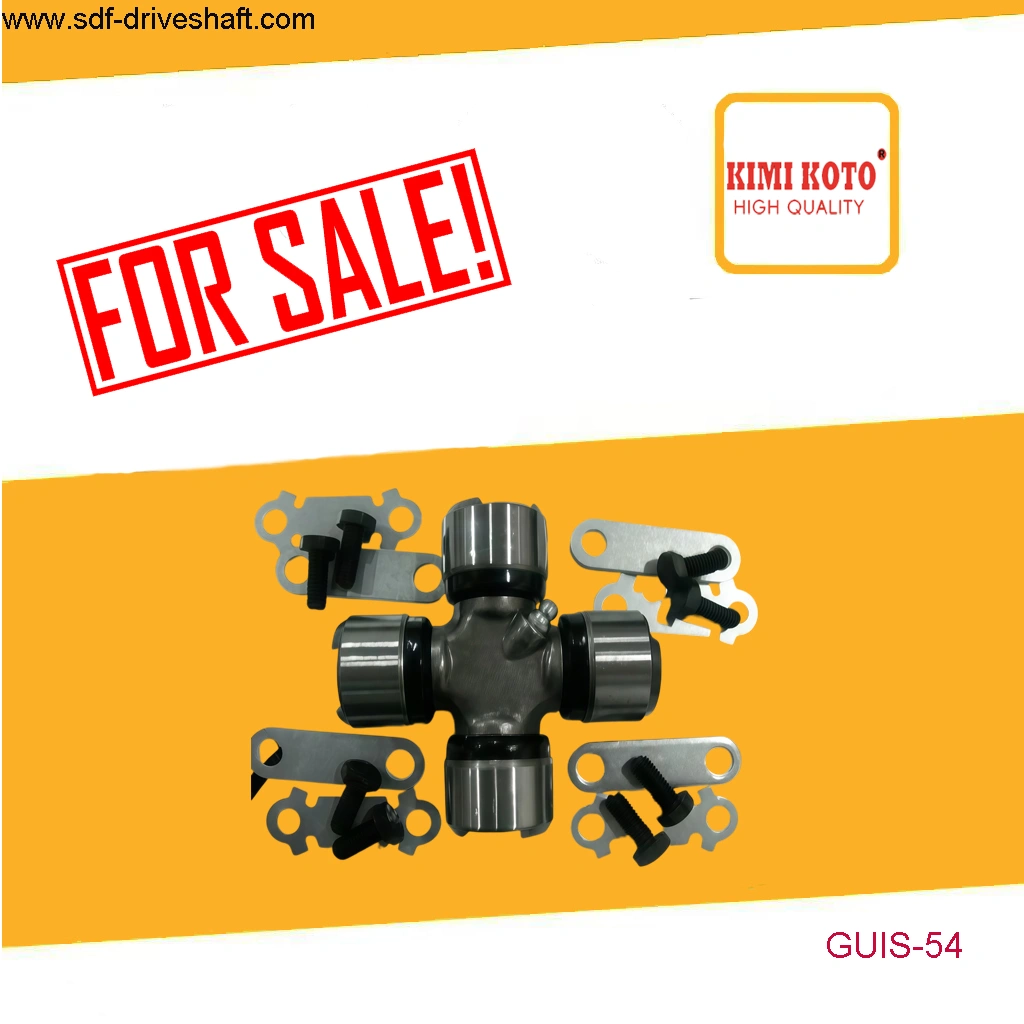

GUIS-54 plate lock universal joint (cross joint), size **36×97mm**, OEM number: **9-37300-055**
Miktar
This is GUIS-54 plate lock universal joint (cross joint), size 36×97mm, OEM number: 9-37300-055. It is a critical spare part for truck drive shafts.
🛠️ Structure
This specific part is an External Snap-Ring Type (Plate Bracket Mount) universal joint. Its structure includes:
This specific part is an External Snap-Ring Type (Plate Bracket Mount) universal joint. Its structure includes:
The Cross (Spider): The main forged alloy steel center core that serves as the pivot point.
Bearing Cups & Needle Rollers: Four cap enclosures packed with precision needle roller pins that sit over the cross journals to facilitate low-friction, heavy-duty rotation.
Grease Nipple/Zerk: A grease fitting located at the center intersection of the cross body, allowing the assembly to be manually lubricated with fresh grease.
Mounting Hardware: Unlike common circlip designs, this kit features unique crescent-shaped locking plates (brackets) and structural mounting bolts designed to physically secure the bearing caps to the drive shaft yokes.
🚛 Application & Specifications
The GUIS-54 is built primarily for the propeller shafts (cardan/drive shafts) of heavy-duty light commercial vehicles, commercial box trucks, and multi-ton cargo diesel transport vehicles.
The GUIS-54 is built primarily for the propeller shafts (cardan/drive shafts) of heavy-duty light commercial vehicles, commercial box trucks, and multi-ton cargo diesel transport vehicles.
🚘 Compatible Machine Models
This exact part number (GUIS-54) and its corresponding dimensions are precision-engineered as an OEM-direct replacement for Isuzu commercial vehicles:
This exact part number (GUIS-54) and its corresponding dimensions are precision-engineered as an OEM-direct replacement for Isuzu commercial vehicles:
Isuzu Elf / NKR / NPR / N-Series Trucks (Specifically matching various 3.5-ton to 4-ton diesel configurations)
Isuzu TX341 & TX552 Trucks
Compatible OEM Cross-Reference Numbers:
9-37300-016-0
9-37300-055-0
9-37300-096-0
9-37300-112-0
9-37300-122-0
Brand:KIMI KOTO
All KIMI KOTO parts undergo rigorous bench testing to meet or exceed industry standards.
Get OEM performance and reliability at a fraction of original Caterpillar dealership prices.
