GUH-73 Universal Joint (Cross Joint) | KIMI KOTO
GUH-73/GUH73
количество

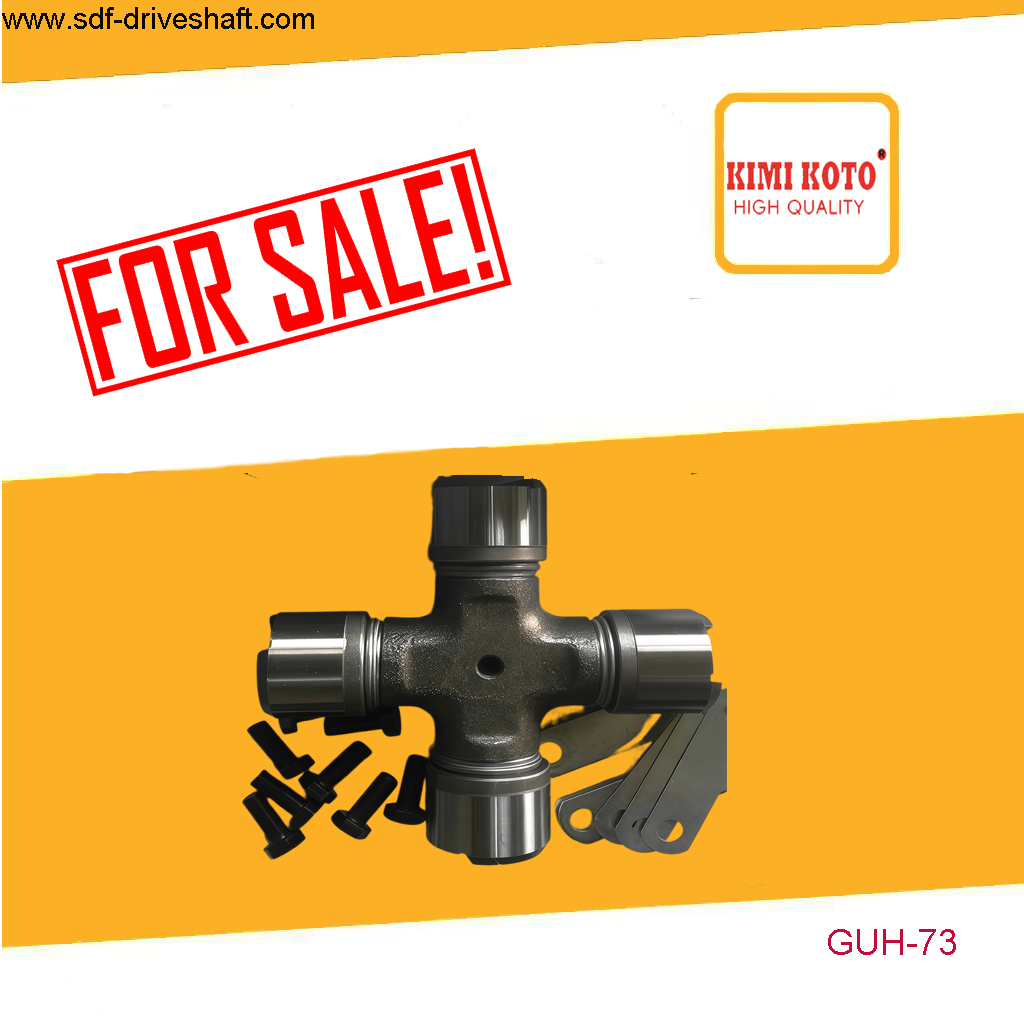

This is GUH-73 plate lock universal joint (cross joint). It is a heavy-duty aftermarket replacement spare part for truck drive shafts, supplied as a full set with lock plates and mounting bolts.
🛠️ Structure
The GUH-73 features a specialized Heavy-Duty Winged Flange / Plate-Mount Design. Its mechanical breakdown includes:
The GUH-73 features a specialized Heavy-Duty Winged Flange / Plate-Mount Design. Its mechanical breakdown includes:
The Spider (Cross Core): Forged from premium 20Cr carbon-alloy steel and heat-treated to an immense hardness rating of HRC 58-64 to combat operational stress and structural fatigue.
Winged/Flanged Bearing Caps: Unlike typical circular caps that seat deep within a yoke pocket using simple clips, two of these caps feature integrated, flat structural wing-plates with mounting bolt holes.
Mounting & Retention Hardware: The kit comes equipped with specialized structural high-tensile bolts and flat backing lock-plates to physically bolt the flanged caps surface-flat against the driving yoke interface.
Internal Needle Rollers & Seals: The journals are packed with precision GCr15 roller pins encased by high-durability rubber seals designed to maintain clean internal lubrication while locking out water, road dust, and salt.
🚜 Application & Dimensions
This specialized, large-format universal joint is built exclusively for the high-capacity propeller shafts and main cardan drivelines of multi-ton industrial cargo vehicles and commercial transport trucks.
Fitted Cap Diameter: 50 mm
Total Joint Span / Length: 165 mm
Approximate Unit Weight: ~5.11 lbs (2.32 kg)
🚘 Compatible Machine Models
The GUH-73 part number and its exact 50mm x 165mm dimensions are custom-engineered as an OEM-direct replacement component for Hino medium and heavy commercial trucks:
Hino Profia / Profia FS Series Heavy-Duty Diesel Cargo Trucks
Hino Ranger / King Series Medium-to-Heavy Utility Trucks
Hino Coach & Transport Buses (Including classic and legacy platforms: RE101, RE121, RE161, JM403 KF, ZM, TC, FB400, EK100, and EF300)
Compatible OEM Cross-Reference Part Numbers:
Hino: 37401-1021 [(S)37401-1021]
Hino: 37402-1011 [(B)37402-1011]
Hino: S0403-74025
