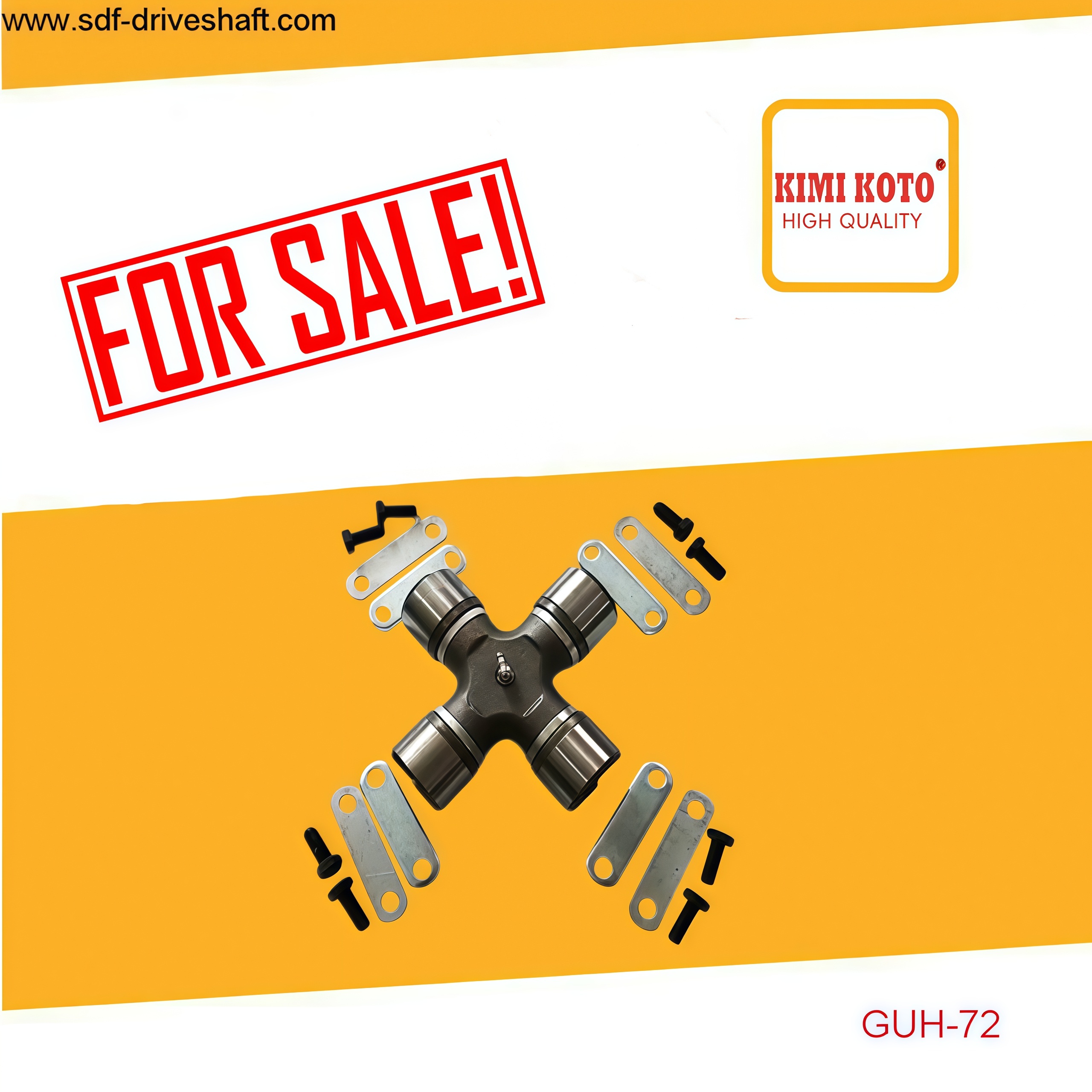

GUH-72 Heavy Duty Universal Joint Cross Spider
Parameter / Technical Feature | Specification Details |
Model / Part Number | GUH-72 (GUH72) |
OEM Cross References | HINO: 37401-1080, 37401-1081 |
Joint Type | External Snap Ring Type (C3 Figure Type) |
Bearing Cap Diameter (D) | 47.00 mm |
Total Assembly Length (L) | 144.00 mm |
Net Weight | Approx. 2.30 kg - 2.50 kg / pc |
Lubrication Type | Pre-filled with high-performance 2# Lithium Grease (Greaseable with dual fittings) |
Cross Body Material | Premium 20Cr Alloy Steel (Case-Hardened) |
Needle Roller Pin Material | High-Carbon Chromium Bearing Steel (GCr15) |
Cross Body Hardness | HRC 58-64 |
Roller Pin Hardness | HRC 61-65 |
Surface Roughness | Cross Body: Ra < 0.4 / Roller Pin: Ra < 0.2 |
Application / Fitment | Propeller shaft and transmission drive line for Hino FF Trucks, Nissan UD medium-to-heavy duty commercial vehicles. |
All KIMI KOTO parts undergo rigorous bench testing to meet or exceed industry standards.
Get OEM performance and reliability at a fraction of original Caterpillar dealership prices.
