9C8369 Slip Joint Group Fits Caterpillar 936 936E 936F G936 Wheel Loader
9C8369
9C8369 Caterpillar 936 parts 9C8369 aftermarket parts Caterpillar universal joint group
Quantity

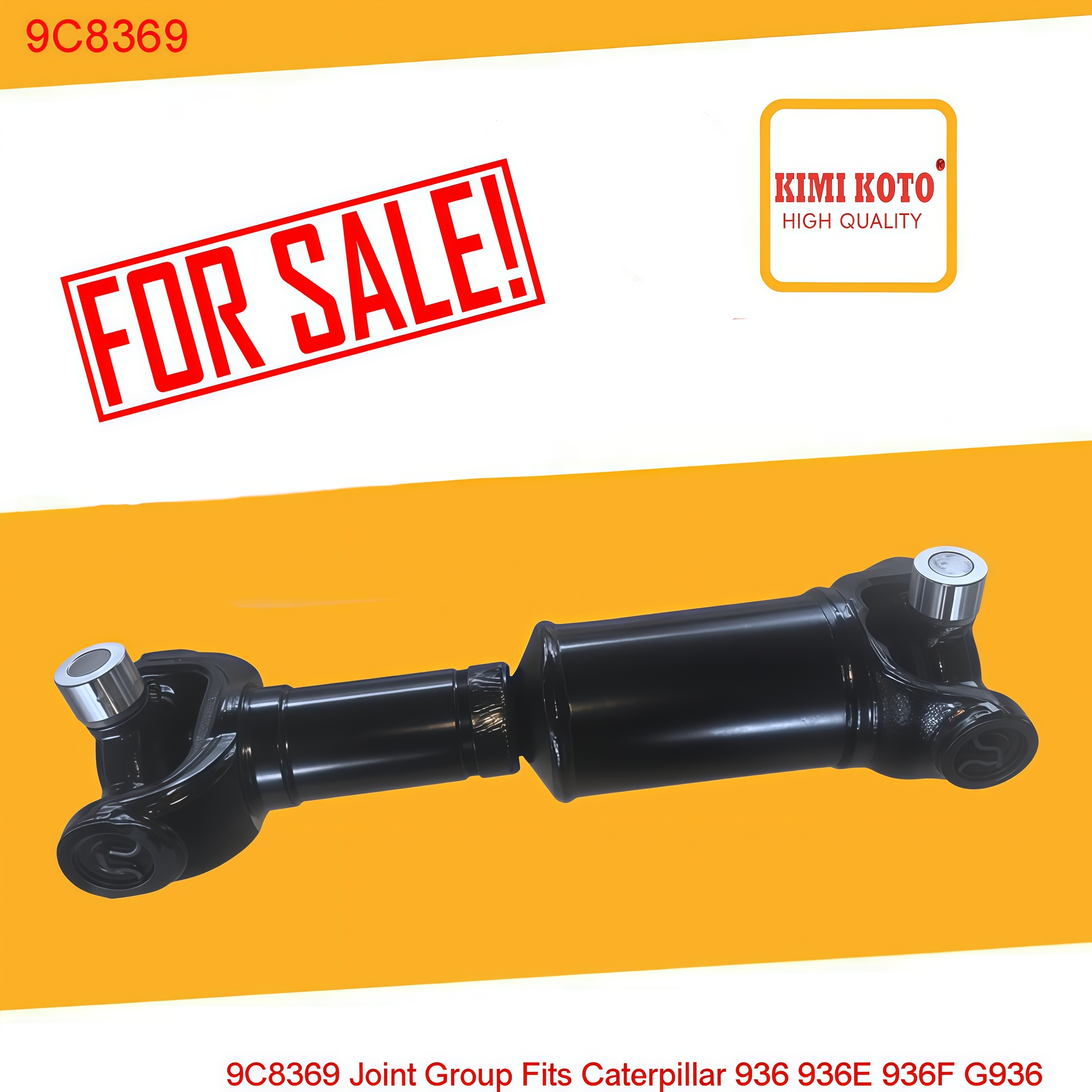

Here is the comprehensive breakdown of the function, structure, and application of the product shown in the image (9C8369 Joint Group / Slip Joint Group).
⚙️ Function
The primary function of this component is to transmit rotational power (torque) from the transmission/engine to the axles while allowing for length and angle changes as the heavy machinery moves.
Rotational Power Transmission: It connects two misaligned rotating shafts to transfer driving force continuously.
Length Compensation (Telescoping): As a"Slip Joint,"the shaft can expand and contract. This absorbs the changing distance between components caused by the vehicle's suspension movement, rough terrain, and frame articulation.
Angular Flexibility: The universal joints (U-joints) at the ends allow the shaft to pivot freely, ensuring smooth power delivery even when the driving and driven components are not perfectly aligned.
Rotational Power Transmission: It connects two misaligned rotating shafts to transfer driving force continuously.
Length Compensation (Telescoping): As a"Slip Joint,"the shaft can expand and contract. This absorbs the changing distance between components caused by the vehicle's suspension movement, rough terrain, and frame articulation.
Angular Flexibility: The universal joints (U-joints) at the ends allow the shaft to pivot freely, ensuring smooth power delivery even when the driving and driven components are not perfectly aligned.
🏗️ Structure
This assembly combines a telescoping slip joint with universal joints at both ends. It consists of the following key structural elements:
Slip Yoke / Splined Shaft: The middle section features an internal female splined tube and an external male splined shaft that slide into each other. This allows the linear telescoping (length adjustment) movement.
Universal Joint Gimbals (U-Joints): Located at both ends. They consist of a cross-shaped journal (spider) and four grease-lubricated needle bearing caps, providing the necessary angular flexibility.
Flanges / End Yokes: The heavy-duty forged metal clamps at the far ends are designed to bolt securely onto the machine's transmission output shaft or differential input yoke.
Dust Boot / Seal: A protective rubber/plastic sleeve or internal seal (visible in the middle) keeps grease inside the splines and prevents mud, dirt, and water from entering and damaging the moving parts.
Slip Yoke / Splined Shaft: The middle section features an internal female splined tube and an external male splined shaft that slide into each other. This allows the linear telescoping (length adjustment) movement.
Universal Joint Gimbals (U-Joints): Located at both ends. They consist of a cross-shaped journal (spider) and four grease-lubricated needle bearing caps, providing the necessary angular flexibility.
Flanges / End Yokes: The heavy-duty forged metal clamps at the far ends are designed to bolt securely onto the machine's transmission output shaft or differential input yoke.
Dust Boot / Seal: A protective rubber/plastic sleeve or internal seal (visible in the middle) keeps grease inside the splines and prevents mud, dirt, and water from entering and damaging the moving parts.
🚜 Application
This specific part number (9C8369) is a heavy-duty drivetrain component engineered for Caterpillar (CAT) Wheel Loaders.
Primary Machinery Fitment: It is specifically designed to fit Caterpillar 936, 936E, 936F, and G936 Wheel Loaders.
Location on the Machine: It is typically installed in the driveline system, serving as either the front or rear drive shaft assembly that connects the central transmission box to the driving axles.
Operating Environment: It is built for severe-duty applications, such as construction sites, mining operations, quarries, and agricultural earthmoving, where the vehicle is constantly subjected to massive torque loads and rugged, uneven ground.
Primary Machinery Fitment: It is specifically designed to fit Caterpillar 936, 936E, 936F, and G936 Wheel Loaders.
Location on the Machine: It is typically installed in the driveline system, serving as either the front or rear drive shaft assembly that connects the central transmission box to the driving axles.
Operating Environment: It is built for severe-duty applications, such as construction sites, mining operations, quarries, and agricultural earthmoving, where the vehicle is constantly subjected to massive torque loads and rugged, uneven ground.
