8V-6825 Caterpillar 8V-6825 Slip Joint Group IT28 IT28B 926 926E G926
8V-6825 8V6825

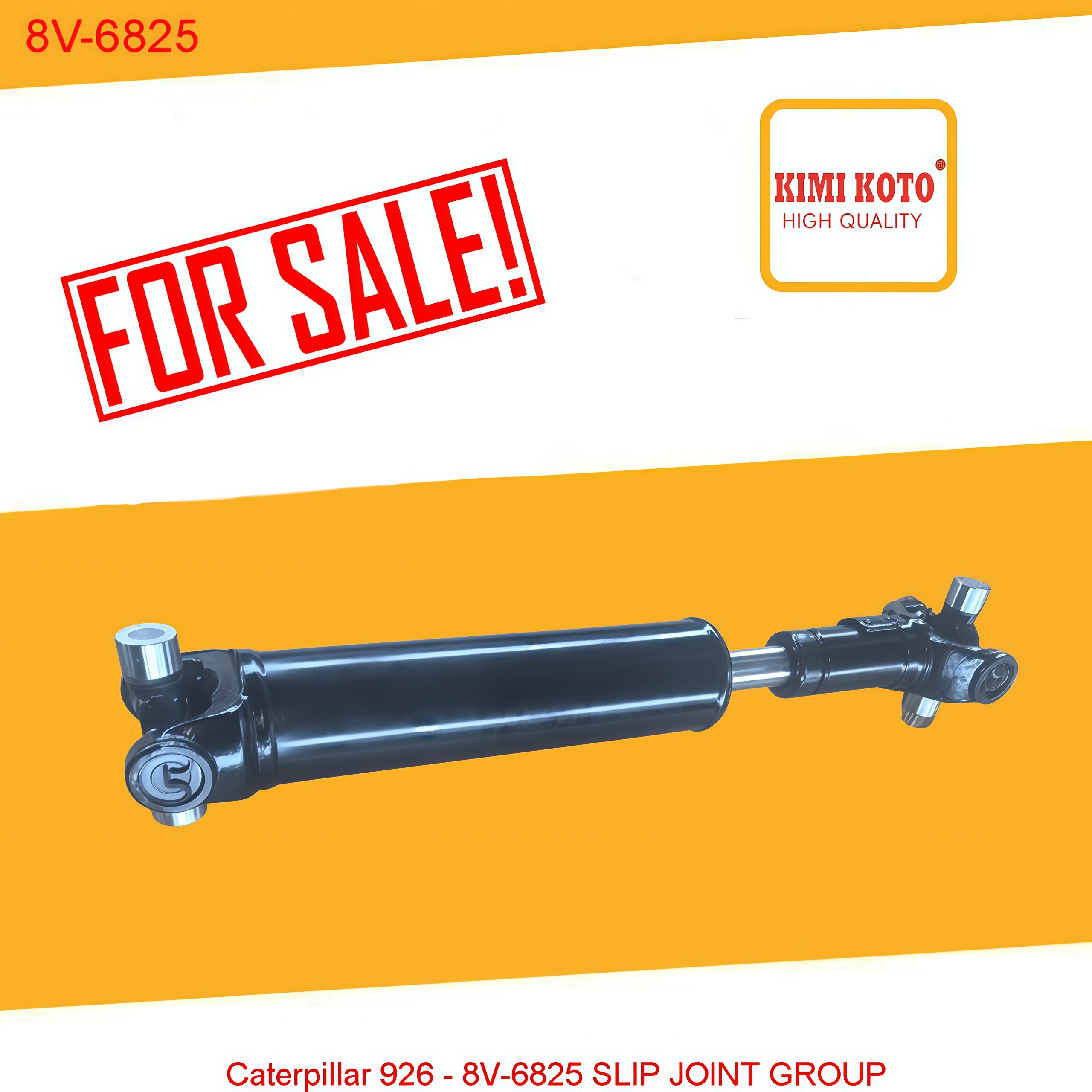

This item is a Slip Joint Group (specifically a Telescoping Drive Shaft with Slip Joint and Universal Joints).
Quantity
🔩 What is it?
This product is a heavy-duty Universal Joint (U-Joint) Shaft Assembly. It is a critical mechanical part used in heavy machinery to connect different sections of the drivetrain, allowing rotating power to pass through shifting angles.
🧱 Structure
The system shown in the image consists of two primary component styles:
Double Cardan / Yoke Assembly (Left): This structure features a central housing block supporting two interconnected universal joints with robust mounting ears (flanges). It is built to bridge gaps where regular single joints would create uneven rotation or vibration.
Spider and Bearing Kit (Right): This features a central metal"cross"(spider) with precision needle-bearing caps on each of the four ends. These caps seal tightly around the cross to reduce friction and allow high-pressure rotational movement.
Spider and Bearing Kit (Right): This features a central metal"cross"(spider) with precision needle-bearing caps on each of the four ends. These caps seal tightly around the cross to reduce friction and allow high-pressure rotational movement.
⚙️ Function
Flexible Power Transmission: It transfers rotational force (torque) seamlessly from the engine or transmission down to the drive axles.
Angle Accommodation: As heavy machines travel over rough terrain, their frame and components shift up and down. This part bends and flexes smoothly, ensuring power is not cut off when parts change angles.
Vibration Dampening: The double-joint configuration balances rotational speeds, which dampens harsh drive line vibrations and protects internal gears from premature wear.
Angle Accommodation: As heavy machines travel over rough terrain, their frame and components shift up and down. This part bends and flexes smoothly, ensuring power is not cut off when parts change angles.
Vibration Dampening: The double-joint configuration balances rotational speeds, which dampens harsh drive line vibrations and protects internal gears from premature wear.
🚜 Application
The"Slip"mechanism: The internal telescoping design allows the shaft to expand or collapse slightly while spinning. This protects the drivetrain from damage when the heavy machinery goes over uneven terrain or turns.
Compatible Machines: It is a replacement part mainly used for Caterpillar 926 series small wheel loaders (including the 926, 926A, 926E, and G926 models) as well as IT28 integrated toolcarriers.
eg:Caterpillar IT28
Caterpillar IT28B
Caterpillar 926 wheel loader
Caterpillar 926E wheel loader
Caterpillar G926 wheel loader
Caterpillar IT28B
Caterpillar 926 wheel loader
Caterpillar 926E wheel loader
Caterpillar G926 wheel loader
