5-160X Universal Joint, Spicer 1410 Series, Silverado 3500 HD

Brand:KIMI KOTO

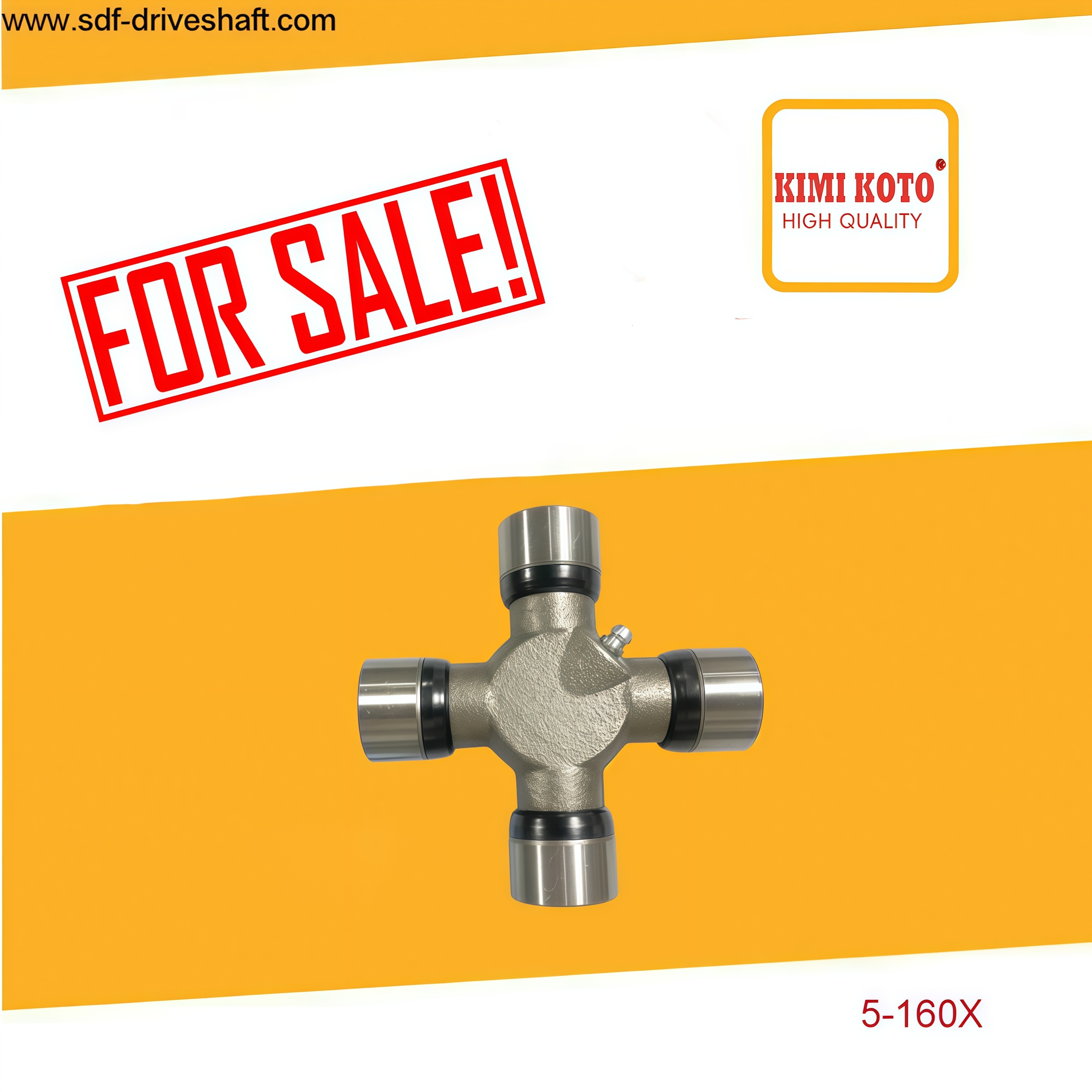

5-160X Universal Joint — Spicer 1410 Series OSR U-Joint for Silverado & Sierra HD

Looking for a replacement 5-160X universal joint for your heavy 4x4 pickup? This is a Spicer 1410 series outside-snap-ring (OSR) cross, used on Chevrolet Silverado and GMC Sierra 3500 HD drivelines. Ships as a complete kit with four bearing caps, needle rollers, seals and circlips — ready to install.

Part number: 5-160X (also 5-1410X)

Series: Spicer 1410

Style: Outside snap ring (OSR), greasable

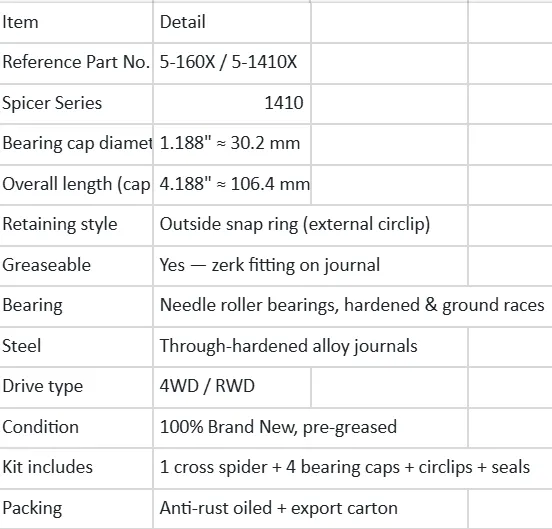

✅Specifications

⚠️ Critical size check — 1410 vs 1350: These two series look almost identical (same 1.188"cap diameter) but the overall length differs: 1410 = 4.188"(this item, 5-160X) vs 1350 = 3.625"(5-178X). They are NOT interchangeable. Please measure your old cross tip-to-tip, or confirm your driveshaft is marked 1410 series. Send us a photo of the old cross if unsure — our engineer confirms free of charge.

✅Compatible Applications

Cross-referenced to Spicer 1410-series drivelines on:

Chevrolet Silverado 2500/3500 HD (2015–2019, 4WD, 2-piece driveshaft)

GMC Sierra 2500/3500 HD (2015–2019, 4WD)

Other GM and American 4x4 pickups using 1410-series driveshafts

This cross is commonly used on front and rear driveshafts at the transmission, center support bearing and rear axle. If your truck measures 30.2×106.4 mm with outside circlips, this cross fits.

✅Why Buy From Us

Right-size guaranteed: Cap OD and overall length ground to the 1410 drawing — clips snap into standard yokes, no modification.

Greasable design: Zerk fitting lets your shop re-lube at every service interval, unlike sealed disposable crosses.

Hardened needle bearings: Journals induction-hardened and precision-ground for towing, hauling and off-road duty on HD pickups.

100% pre-packed & anti-rust: Each cross is pre-greased, rust-inhibited and boxed individually.

Driveline specialist: We supply U-joints, yokes and complete drive shafts for pickups, SUVs, heavy trucks and construction equipment — one source for your driveline range.

✅Quality & Support

Sample order welcome — test on one vehicle before fleet-wide purchase.

Volume pricing for wholesalers, repair shops, 4x4 garages and fleets.

Engineer reply within 24h for fitment and dimension questions.

Shipment photos and packing list sent before dispatch.

✅Inquiry Now

Send us: (1) your old part number or measured dimensions (cap OD + overall length), (2) quantity, (3) destination port. Quotation within one working day.

Note:This is an aftermarket replacement part, not an original Spicer/Dana, GM, Chevrolet or GMC part. Brand names and numbers are used for fitment reference only. All trademarks belong to their respective owners.
