5-330X Heavy Duty Universal Joint, Spicer 2R Series, Wing Style

Brand:KIMI KOTO

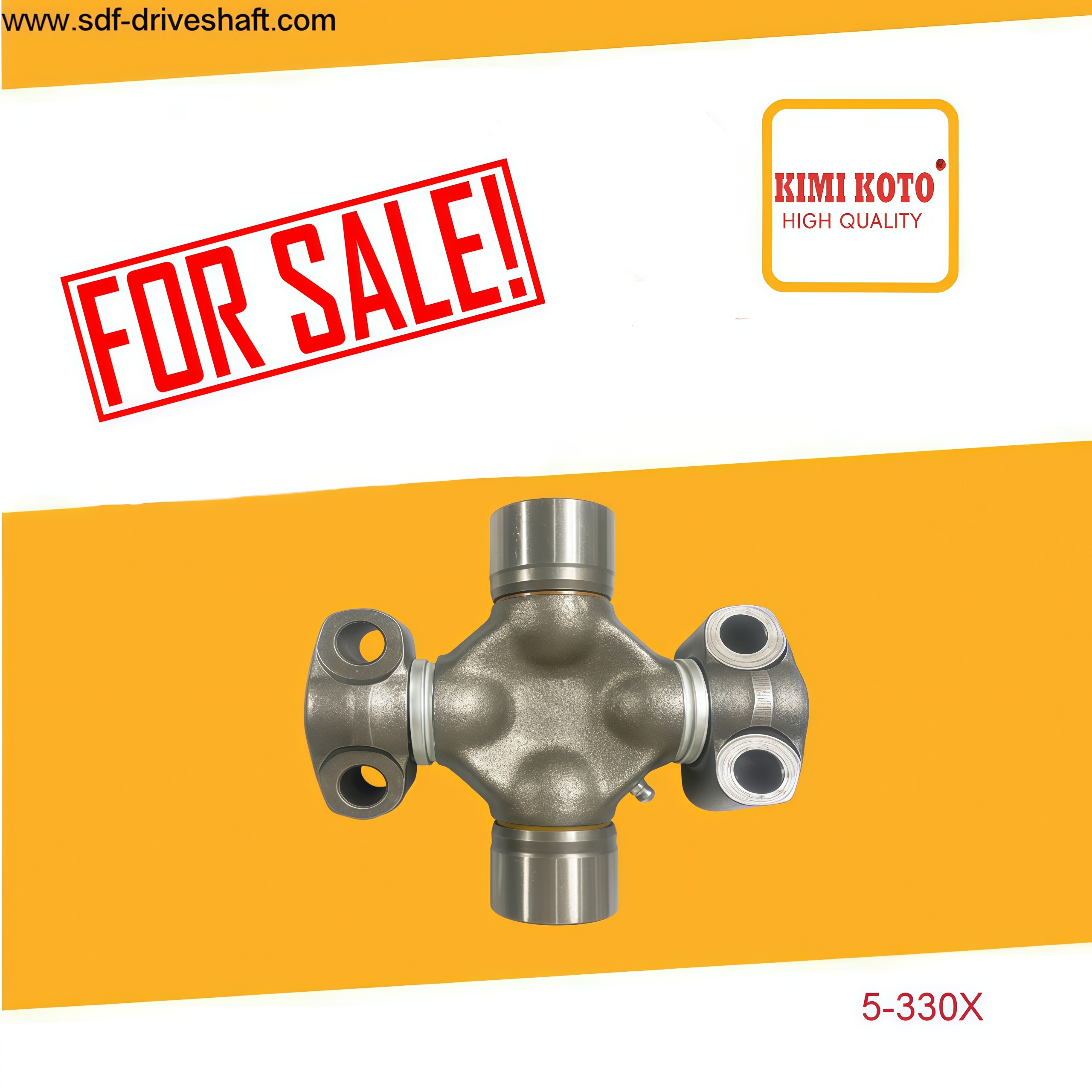

5-330X Heavy-Duty Universal Joint — Spicer 2R Series Wing-Bearing U-Joint

Looking for a replacement 5-330X universal joint for a heavy commercial truck or bus propshaft? This is a Spicer 2R series wing-bearing (OSR/WB) cross kit, built for high-torque Class 8 truck and motorcoach drivelines. It ships as a complete kit with bearing caps, needle rollers, seals and retaining hardware — ready to bolt into your existing yokes.

Part number: 5-330X

Series: Spicer 2R

Style: Outside snap ring / wing bearing (OSR/WB), greasable

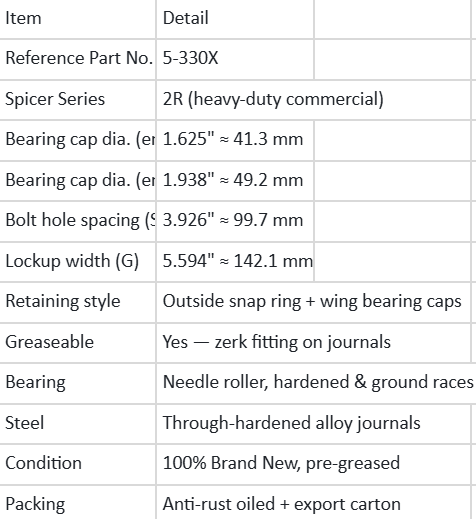

✅Specifications

⚠️ Critical fitment note — this cross is NOT equal-ended. The two bearing cap diameters differ (1.625"on one side, 1.938"on the other). It only fits yokes designed for the 2R wing-bearing arrangement. Please confirm: (1) your old part number is 5-330X, (2) the bolt hole spacing on your yokes measures ~3.926", or (3) send us a photo of the old cross. Our engineer will double-check free of charge before dispatch.

✅Compatible Applications

Cross-referenced to Spicer 2R series drivelines used on:

Class 8 heavy-duty commercial trucks (North American highway tractors)

Motorcoaches / city buses

Heavy vocational trucks (dump, mixer, refuse chassis)

This 2R-series wing-style cross is commonly stocked by North American truck parts distributors. If your truck is another make and the old cross matches the dimensions above, send us a photo — we will confirm fitment.

✅Why Buy From Us

Right-size guaranteed: Cap diameters, bolt-hole spacing and lockup width ground to the 2R drawing — no re-drilling or bushing.

Wing-bearing design matches original: The two-bolt wing caps clamp into standard 2R yokes, same as the original arrangement.

Greasable journals: Zerk fittings allow re-lubrication at service intervals, unlike sealed disposable crosses.

Hardened needle bearings: Journals induction-hardened and precision-ground for high-torque Class 8 duty.

Driveline specialist: We supply U-joints, yokes and complete drive shafts for heavy trucks, buses and construction equipment — one source for your propshaft range.

✅Quality & Support

Sample order welcome — test on one vehicle before fleet-wide purchase.

Volume pricing for wholesalers, repair chains and fleets.

Engineer reply within 24h for fitment and dimension questions.

Shipment photos and packing list sent before dispatch.

✅Inquiry Now

Send us: (1) your old part number or measured dimensions (both cap diameters + bolt spacing), (2) quantity, (3) destination port. Quotation within one working day.

Note:this is an aftermarket replacement part, not an original Spicer/Dana part. Spicer and series names are used for fitment reference only. All trademarks belong to their respective owners.
