GUH-79 Universal Joint (Cross Joint) | KIMI KOTO
GUH-79 /GUH79
Universal Joint (U-Joint) Cross Assembly Kit
Quantity

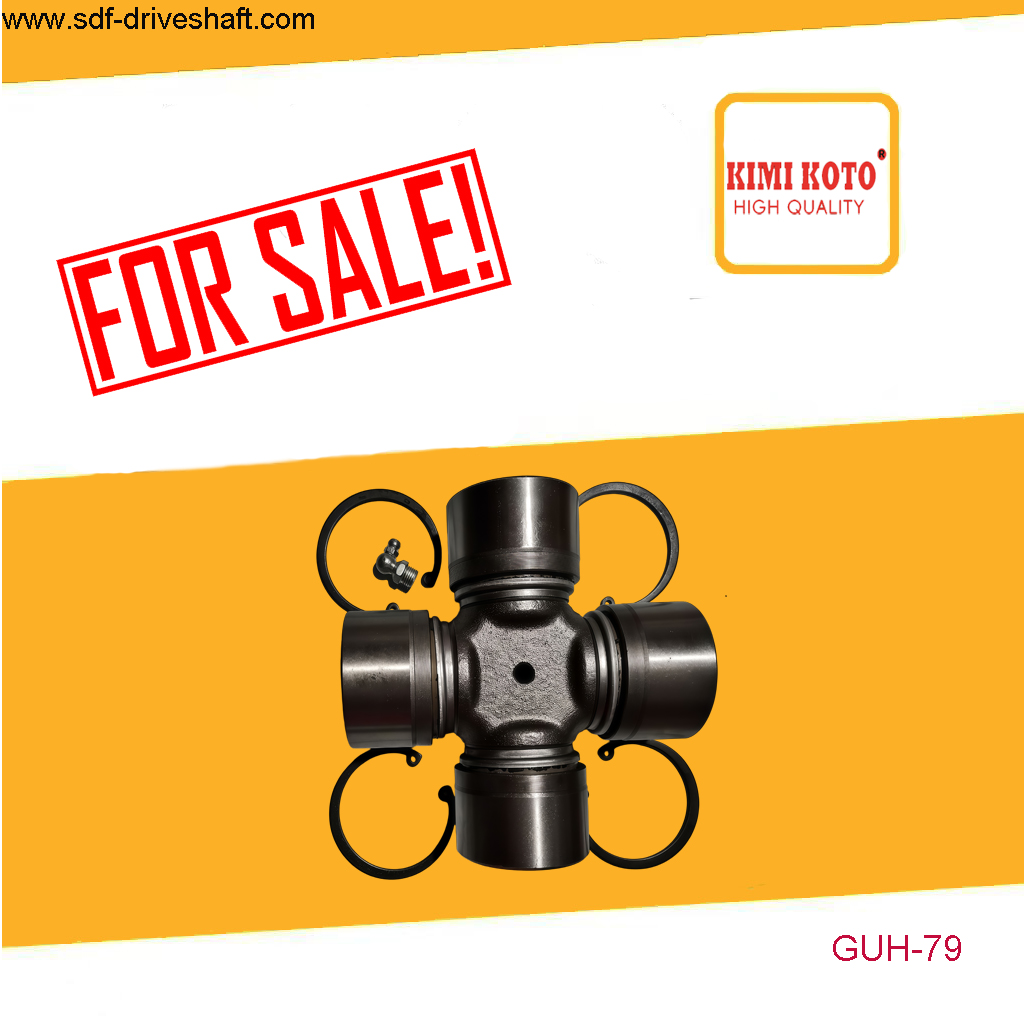

This is GUH-79 circlip type universal joint (cross joint), a heavy-duty replacement spare part for truck drive shafts. It is supplied complete with retaining circlips and a grease nipple.
🛠️ Structure
The GUH-79 is a Greasable External Snap-Ring (Circlip) Design. Its structural components include:
• The Spider (Cross Core): A central four-point forged steel core treated with a black anti-corrosion surface coating to withstand demanding friction and stress.
• Bearing Cups & Needle Rollers: Four ground-metal caps packed with precision needle roller pins that slide over the cross journals to deliver fluid rotation under heavy loads.
• Lubrication System: A central grease port fitted with a threaded grease nipple (zerk), enabling routine maintenance and re-greasing to clear out debris and minimize friction wear.
• Retention Hardware: The kit includes four elastic external snap-rings (circlips) that snap firmly into grooves on the driveshaft yoke to prevent the bearing cups from slipping out.
• The Spider (Cross Core): A central four-point forged steel core treated with a black anti-corrosion surface coating to withstand demanding friction and stress.
• Bearing Cups & Needle Rollers: Four ground-metal caps packed with precision needle roller pins that slide over the cross journals to deliver fluid rotation under heavy loads.
• Lubrication System: A central grease port fitted with a threaded grease nipple (zerk), enabling routine maintenance and re-greasing to clear out debris and minimize friction wear.
• Retention Hardware: The kit includes four elastic external snap-rings (circlips) that snap firmly into grooves on the driveshaft yoke to prevent the bearing cups from slipping out.
🚜 Application & Dimensions
This medium-to-heavy duty universal joint is optimized for the propeller shafts, main cardan transmission assemblies, and PTO systems of heavy transport vehicles and commercial trucks.
• Bearing Cap Diameter: 60 mm
• Total Joint Length / Span: 152 mm
• Bearing Cap Diameter: 60 mm
• Total Joint Length / Span: 152 mm
🚘 Compatible Machine Models
The GUH-79 model (alternatively referenced under cross-code TT-179) is specifically manufactured as an OEM-direct replacement component for Hino heavy commercial trucks:
• Hino 700 Series Heavy Duty Trucks
• Hino Ranger / Profia Medium & Heavy Duty Vehicles
Compatible Genuine OEM Cross-Reference Numbers:
• Hino: 04037-4101
• Hino: 04037-410
• Hino 700 Series Heavy Duty Trucks
• Hino Ranger / Profia Medium & Heavy Duty Vehicles
Compatible Genuine OEM Cross-Reference Numbers:
• Hino: 04037-4101
• Hino: 04037-410
Brand:KIMI KOTO
All KIMI KOTO parts undergo rigorous bench testing to meet or exceed industry standards.
Get OEM performance and reliability at a fraction of original Caterpillar dealership prices.
