GUH-75 Universal Joint (Cross Joint) | KIMI KOTO
GUH-75/GUH75
Universal Joint (U-Joint) Cross Assembly Kit
Quantity

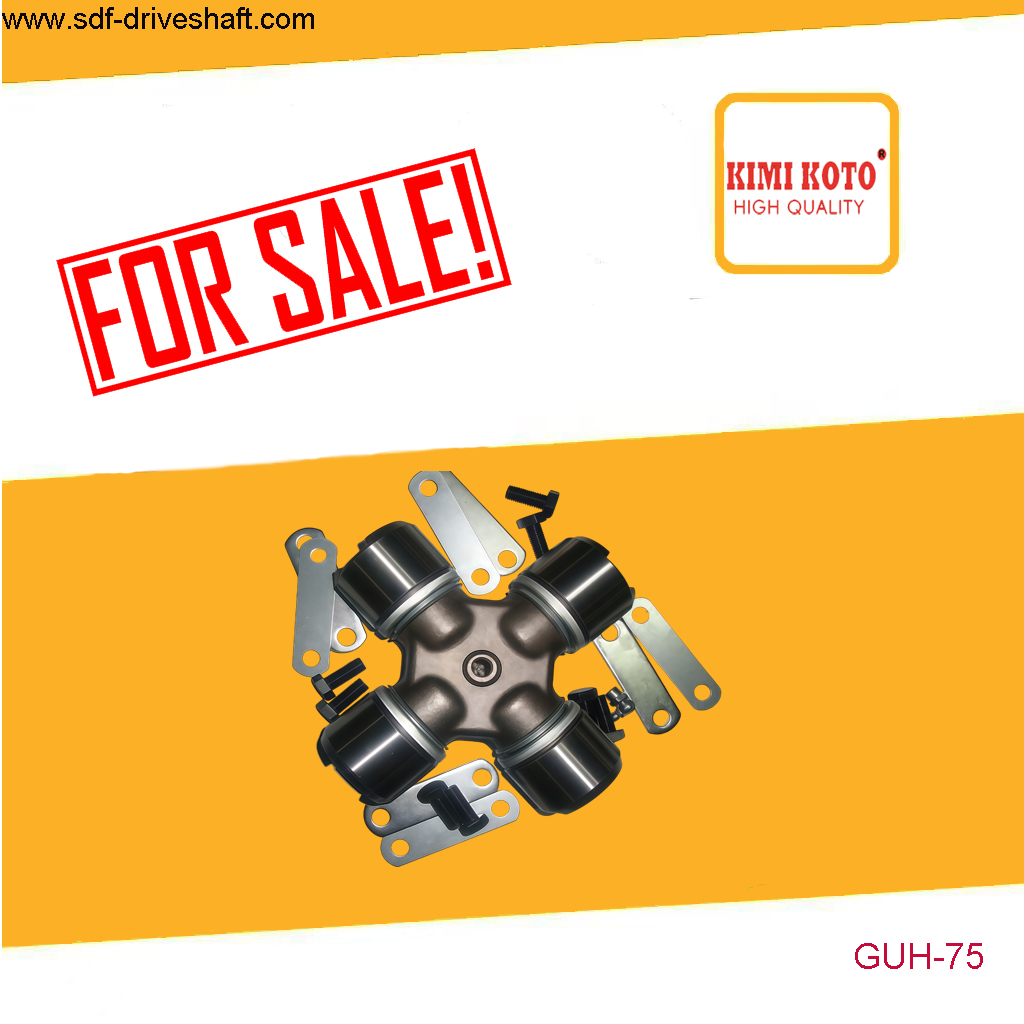

This is GUH-75 plate lock universal joint (cross joint), a heavy-duty replacement spare part for truck drive shafts. It comes with lock plates and mounting bolts as a full set.
🛠️ Structure
TheGUH-75 is engineered as a Heavy-Duty Wing-Style / Bar-Plate Mounted Joint. Its specific construction includes:
- The Spider (Cross Body): Forged from premium-grade 20Cr alloy steel and carburized/heat-treated to a hardness of HRC 58-64 to withstand massive mechanical pressure and wear.
- Winged/Bar-Plate Bearing Caps: Unlike typical circular caps that use clip-rings, these heavy-duty caps feature integrated rectangular flange plates (ears) with pre-drilled holes.
- Mounting Accessories: The kit includes matching structural steel backing lock-plates and reinforced high-tensile mounting bolts. These components physically bolt the bearing caps flat onto the face of the heavy-duty driveshaft yoke, creating a rigid mount.
- Seals & Lubrication: The assembly features tightly fitted multi-lip rubber oil seals to hold internal grease inside the needle roller pins while locking out road dirt, grime, and moisture.
🚜 Application & Dimensions
This giant-scale universal joint is exclusively built for the high-torque propeller shafts and main drivelines of multi-ton industrial cargo vehicles, commercial semi-trucks, and heavy diesel transport machinery.
- Cap / Journal Diameter: 58 mm
- Total Joint Width / Span: 175 mm
- Approximate Unit Weight: ~5.20 kg (11.4 lbs)
🚘 Compatible Machine Models
TheGUH-75 model and its 58x175mm specifications are precision-engineered as an OEM-direct replacement part primarily for Hino heavy commercial diesel trucks:
- Hino Ranger Series (Medium-to-heavy duty commercial variants)
- Hino Profia / King Series (Heavy-duty diesel semi-tractors and multi-axle dump trucks)
Compatible OEM Cross-Reference Numbers:
- Hino:37401-1180
- Hino:37402-1280
- Hino:04037-4033
Brand:KIMI KOTO
All KIMI KOTO parts undergo rigorous bench testing to meet or exceed industry standards.
Get OEM performance and reliability at a fraction of original Caterpillar dealership prices.
